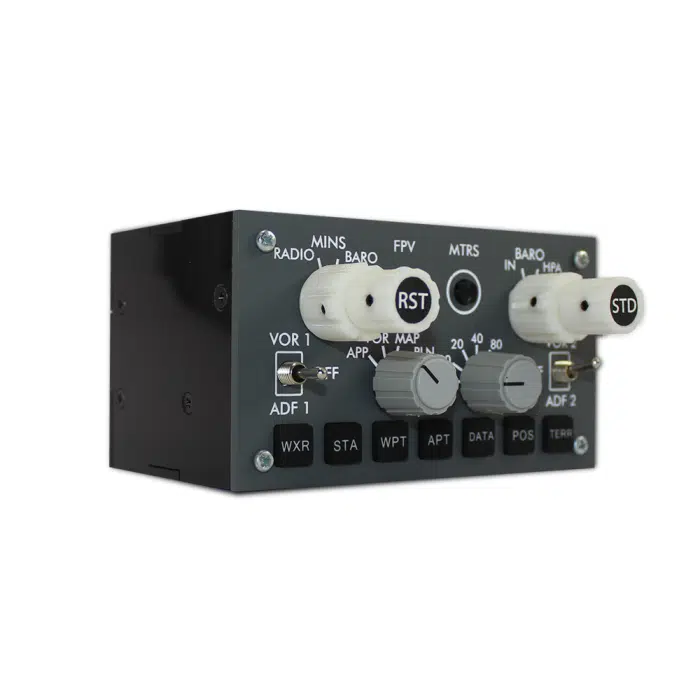

BOEING 737 EFIS Panel

Finished Product:

-Compatible P3D, Xplane-11

-Interface with Mobiflight, Air Manager and LUA script, etc.

-BARO and MINS are available.

-Full backlight

-Buttons with LED

Front Plate:

-Painted with RAL7011

-3mm Plexiglass

-Laser-cut and engraved

-Buttons are painted with black and laser engraved

Needed components (for DIY):

FOR PCB PART 1 ;

• 32  1206 SMD LED (amber)
• 4    1206 SMD Capacitor Aluminum; 100uF
• 10   2.54mm Header 8×2 Pin
• 39   1206 SMD Resistor; 200 ohms
• 2     Switch Toggle; ON None ON
• 1     2.54mm JST Connector 2 Pin
• 7     Tact Switch LED, Thru-Hole 12x12mm

FOR PCB PART 2;

• 2    25 Pin D-Sub Connector Male; 180 degree
• 4    12 Pin Rotary Switch
• 10   2.54mm Header 8×2 Pin
• 39   20mm Rotary Encoder
• 2     Switch Toggle; ON None ON
• 1     2.54mm JST Connector 2 Pin

-Components are soldered to the PCB and tested.

Only PCB:

-Perfectly fit for the components

Options: Only PCB / PCB with components / Finished Product
