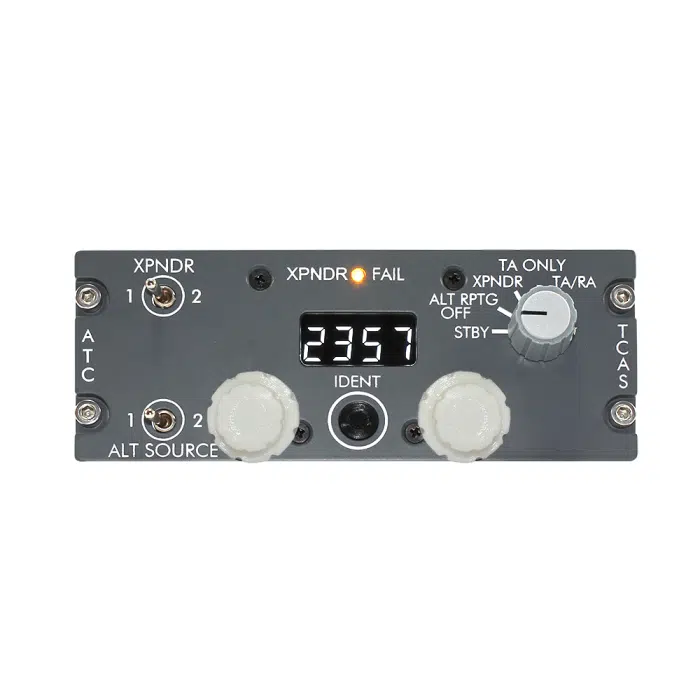

B737 ATC Radio Module

Finished Product:

-Compatible P3D, X-Plane11

-Interface with Mobiflight, Air Manager, etc.

-Full backlight

Front Plate:

-Painted with RAL7011

-6mm Plexiglass

-Laser-cut and engraved

-Buttons are painted with black

Needed components (for DIY):

1. 14 x LED (amber) (SMD, 1206)
2. 1 x Capacitor Aluminum; 100uF (SMD, 1206)
3. 1 x Capacitor Ceramic; 10uF (SMD, 1206)
4. 4 x 7 Segment LED Display (White 0.36 inch 1 Bit Common Cathode)
5. 18 x Resistor; 200 ohms (SMD, 1206)
6. 2 x Switch Toggle; ON None ON (SMD, 1206)
7. 1 x MAX7219 (SMD, SO24)
8. 2 x Incremental Rotary Encoder, Dual Shaft, 11mm
9. 1 x 12x12mm Button with LED
10. 1 x Connector DSUB 25PIN ( 180C Pcb type Male )
11. 1 x Rotary Switch (12 PIN)

-Components are soldered to the PCB and tested.

Only PCB:

-Perfectly fit for the components

Options: Only PCB / PCB with components
