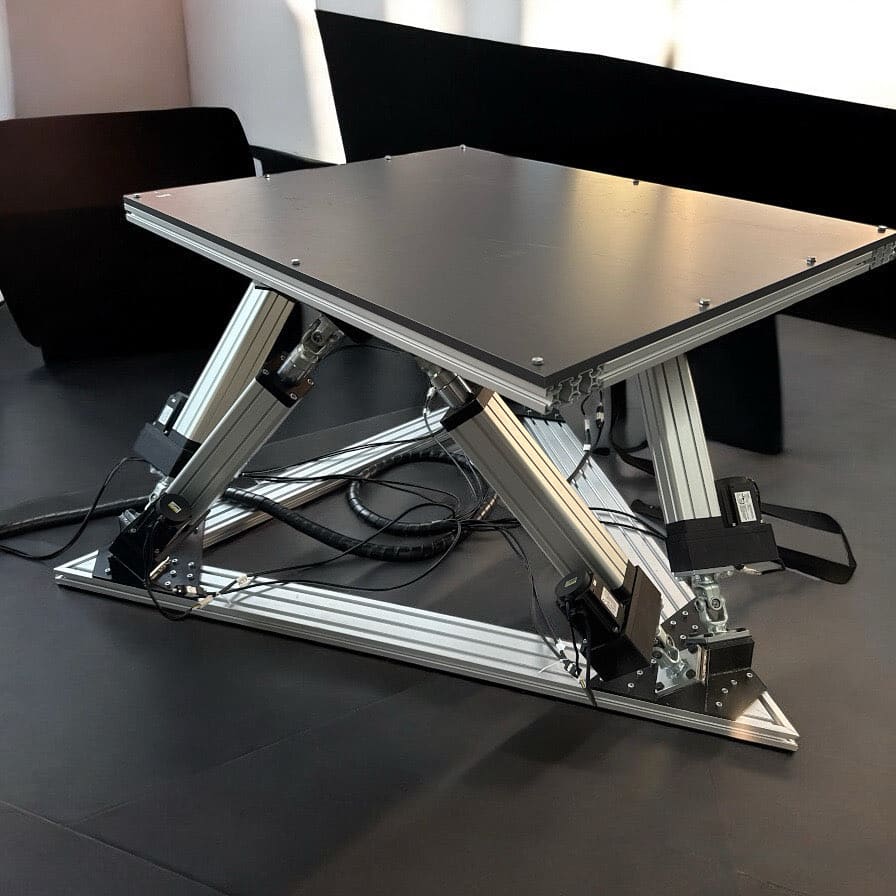

FL300HP 6DOF Motion System

What’s Included?

• 6x FL300HP Actuators
• 1x All-in-One Driver Case
• 1x USB Cable
• 1x Power Cable

Compatible Rigs:
     Contact Core Flight Tech. If you need a special-size cockpit frame.

Software Features:

• Compatible with SimTools and FlyPT Mover
• Ready to Run with MSFS, P3D, X-Plane and more!
• Fully customizable motion profiles

Specs:

• Max. Load: 400 kg
• 6x 1000W Powerful Servo Motors
• 6x Servo Drivers
• 6x 300mm Actuators with 10mm safety margin
• Max. Speed: 375 mm/sec, Default: 250mm/s
• Roll/Pitch: ±23°, Yaw: ±15°
• Surge/Sway: ±120mm
• Heave: ±130mm

Dimensions:

• Platform Height from the floor: 90cm (Act. are fully closed)
• Bottom Frame: 150×180 cm
• Top Frame: 100×160 cm
• Contact Core Flight Tech. If you need a special-size top frame.

Please get in touch with us if you have any questions.
